Router vs Bridge: Differences for Enterprise Networks

When building or expanding an enterprise network, you'll often encounter two key devices: routers and bridges.

While both are used to connect parts of a network, they operate differently and serve distinct purposes.

Understanding these differences is crucial for designing an efficient and scalable network architecture.

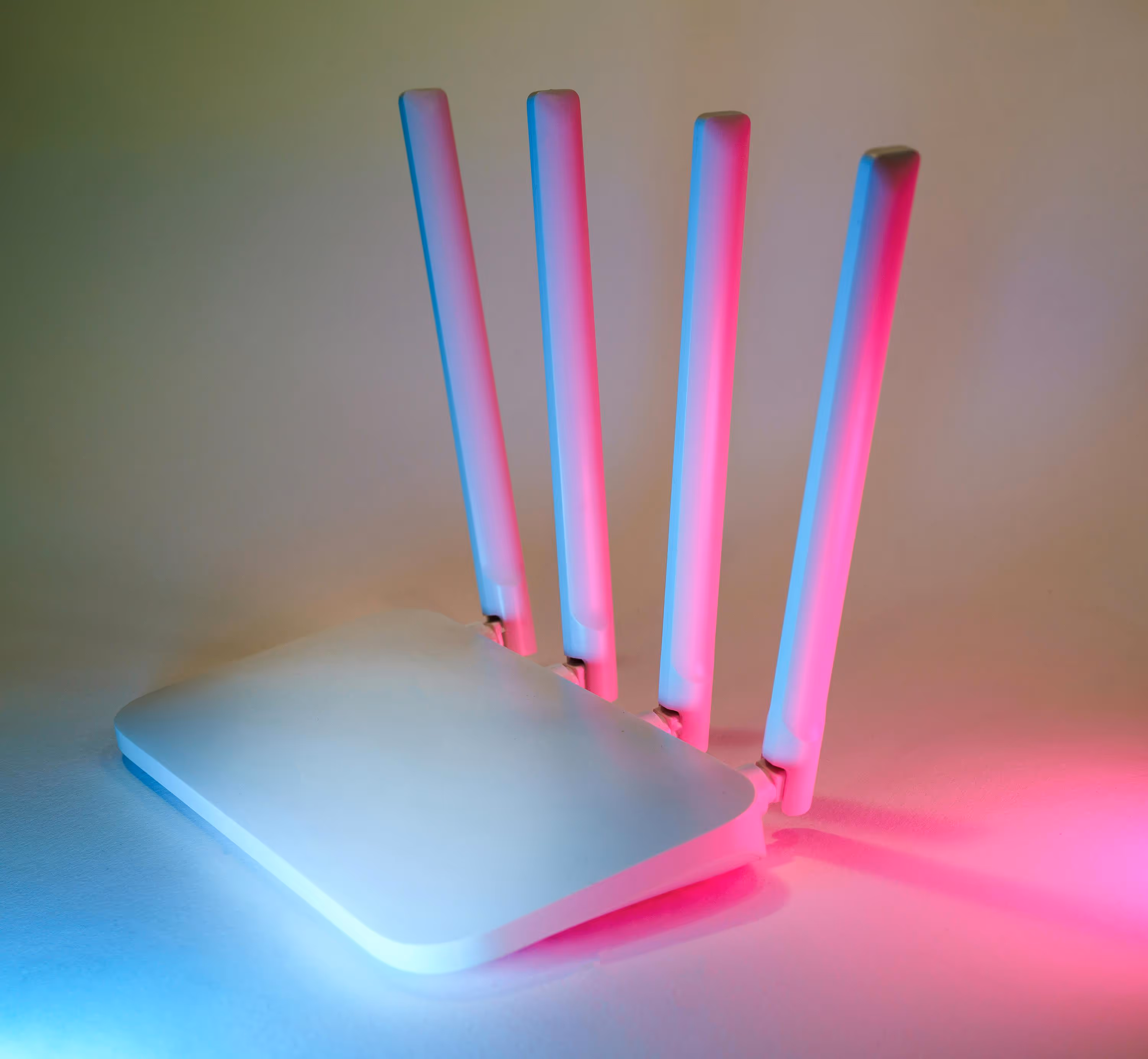

What is a Router?

A router is a networking device that directs data traffic between different computer networks. It acts as a dispatcher, ensuring data packets arrive at their correct destination by the most efficient route. Operating at Layer 3 (the network layer) of the OSI model, it uses IP addresses to make these routing decisions.

Here’s a breakdown of its primary functions:

• Traffic Direction: It inspects the destination IP address of each data packet and consults its internal routing table to forward the packet along the best path.
• Network Connection: It connects your local area network (LAN) to other networks, such as a wide area network (WAN) or the internet.
• IP Address Assignment: Routers often include a DHCP server to automatically assign local IP addresses to devices within the network.
• Security: Most enterprise routers provide security features like a firewall and Network Address Translation (NAT), which helps protect internal network devices from direct outside access.

What is a Bridge?

A network bridge is a device that connects two or more separate network segments, making them function as a single, larger local area network (LAN). It operates at Layer 2 (the data link layer) of the OSI model, meaning it uses physical MAC addresses—not IP addresses—to forward data frames between segments.

Its core purpose is to intelligently manage traffic within a single network. Here’s how it works:

• Segment Connection: It links different parts of a LAN, like connecting two office floors, so they can communicate directly without needing a router.
• Traffic Filtering: A bridge builds a MAC address table to learn which devices are on each segment. This allows it to forward traffic only to the segment where the destination device resides, reducing unnecessary data flow and congestion.
• Collision Domain Reduction: By dividing a network, a bridge creates separate collision domains. This minimizes data collisions and can improve performance on busy networks.
• Protocol Transparency: Since it works at the data link layer, a bridge is transparent to higher-level network protocols like IP, making it a simple plug-and-play solution for extending a local network.

Router vs Bridge: Key Differences

While both devices connect network segments, their methods and scope are fundamentally different. Here are the main distinctions an IT leader should know.

1. OSI Layer and Addressing

The most fundamental difference lies in where they operate. Routers function at Layer 3 (the Network Layer), using logical IP addresses to direct traffic between entirely different networks.

Bridges, in contrast, operate at Layer 2 (the Data Link Layer). They use physical MAC addresses to forward data frames between segments of the same local network.

2. Network Scope

A router's primary job is to connect disparate networks. It acts as the gateway connecting your internal office network to another network, like the internet or a different corporate WAN.

A bridge works exclusively within a single network. It connects two or more segments of the same LAN so they function as one cohesive whole, without creating separate networks.

3. Decision-Making Logic

Routers make intelligent pathing decisions. They analyze routing tables containing information about various network paths to select the most efficient route for data to travel.

Bridges make simpler forwarding decisions. They maintain a MAC address table to track which devices are on which segment and simply pass data to the correct local destination.

4. Broadcast Traffic Handling

Routers create broadcast domain boundaries. They do not forward broadcast traffic from one connected network to another, which helps contain network congestion and unnecessary chatter.

Bridges forward all broadcast traffic to every connected segment. This means all segments connected by a bridge share the same broadcast domain, which can increase overall network traffic.

When to Use a Router

A router is your go-to device for connecting different networks and controlling how data flows between them. It becomes necessary in several key scenarios.

• Connecting to the Internet or a WAN: Use a router to link your local office network (LAN) to an external network. This is its most common and critical function for giving your team access to outside resources.
• Segmenting Large Networks: When you need to divide a large corporate network into smaller, more manageable subnets (e.g., for different departments), a router is used to direct traffic between them efficiently.
• Enforcing Security Policies: If you need to protect your internal network from unauthorized access, a router’s built-in firewall capabilities are essential for filtering traffic.

When to Use a Bridge

A bridge is the right tool for simpler tasks focused on expanding or managing traffic within a single local network. It’s a practical choice in specific situations.

• To extend your LAN: Use a bridge to connect two network segments as if they were one, such as linking two office floors or adjacent buildings, without the complexity of routing.
• To improve network performance: If one part of your network is experiencing high traffic, a bridge can isolate it and filter data, reducing congestion on other segments.
• For simple network expansion: When you need a plug-and-play device to connect segments without reconfiguring IP addresses or routing protocols, a bridge is an ideal choice.

Common Use Cases in Enterprise Networks

To see how these devices fit into a real-world network strategy, let's explore some common enterprise scenarios.

Router Use Cases

A router is fundamental when connecting a branch office to the main corporate network (WAN) and the internet. It establishes the pathways for data to travel between these separate networks.

It also creates logical divisions. For example, you can use a router to create a separate subnet for guest Wi-Fi, isolating visitor traffic from the secure internal network.

Bridge Use Cases

A bridge is often used to improve performance in a localized area. If a media department's high-bandwidth video work is slowing down the rest of the office LAN, a bridge can isolate their segment.

It forwards traffic destined for the media team to their segment only, preventing that heavy traffic from flooding the entire network while keeping them connected to it.

Making the Right Choice for Your Network

Choosing between a router and a bridge comes down to a simple question: are you connecting different networks or just different parts of the same one?

A router is the correct tool for directing traffic between your internal network and the internet, or for creating separate subnets for security and organization. It operates at the network layer, using IP addresses to make intelligent routing decisions.

A bridge, on the other hand, is a simpler device for extending a single LAN or reducing traffic congestion within it. It works at the data link layer, connecting segments without creating new networks.

Ultimately, selecting the right device is a foundational step in building a reliable network. This choice impacts everything from performance to security, forming a key part of your overall telecom infrastructure strategy.

Need Help Managing Your Network? Lightyear Can Help

Choosing the right hardware is just the first step. Lightyear can help you manage the entire lifecycle of your network services, from procuring the right circuits to tracking your hardware inventory.

By automating network service procurement, inventory management, and bill consolidation, Lightyear takes the pain out of telecom infrastructure management. The hundreds of enterprises who trust Lightyear achieve 70%+ time savings and 20%+ cost savings on their network services.

Schedule a demo or get started with our questionnaire today.

Frequently Asked Questions about Router vs Bridge

Can a router also function as a bridge?

Yes, many modern routers can be set to "bridge mode." This disables their Layer 3 routing capabilities, allowing them to act as a simple Layer 2 device to connect network segments, effectively extending your LAN without creating a new network.

Is a network switch the same as a bridge?

A network switch is essentially an evolution of a bridge. Think of a switch as a multi-port bridge. While a classic bridge connects two segments, a switch connects multiple devices, intelligently forwarding traffic only to the port of the intended recipient.

What is a "brouter"?

A brouter is a hybrid device combining bridge and router functions. It can route specific network protocols that it understands and bridge all other traffic. While once useful, brouters are less common today as modern routers and Layer 3 switches handle these tasks more efficiently.
